Optical Lens

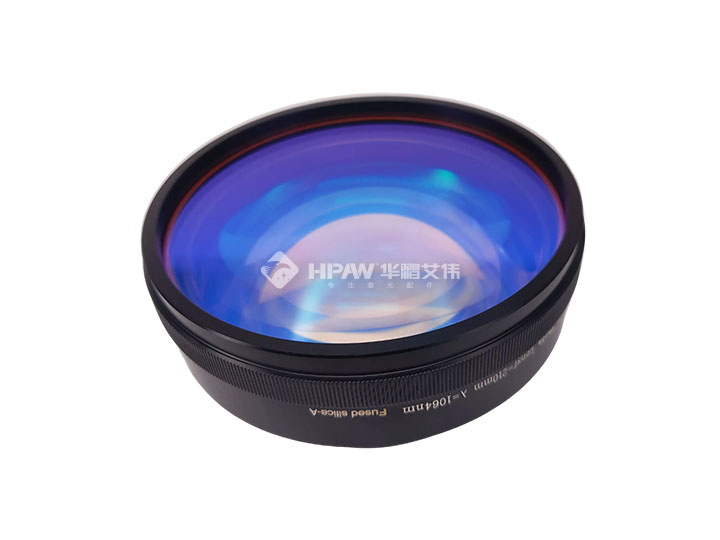

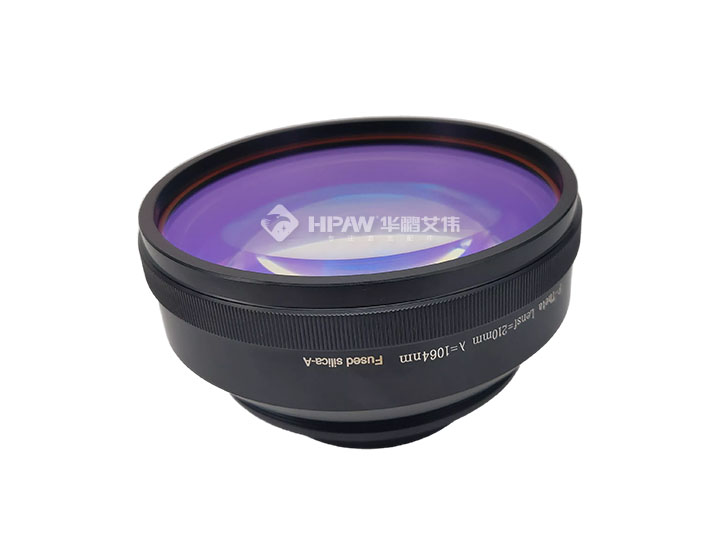

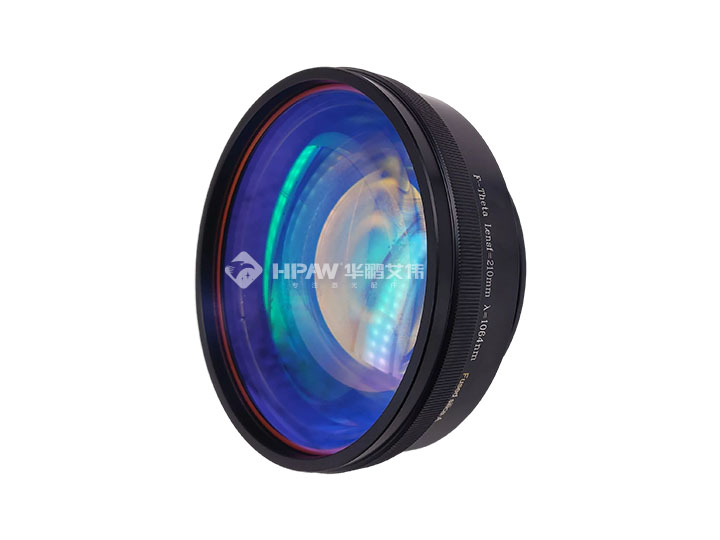

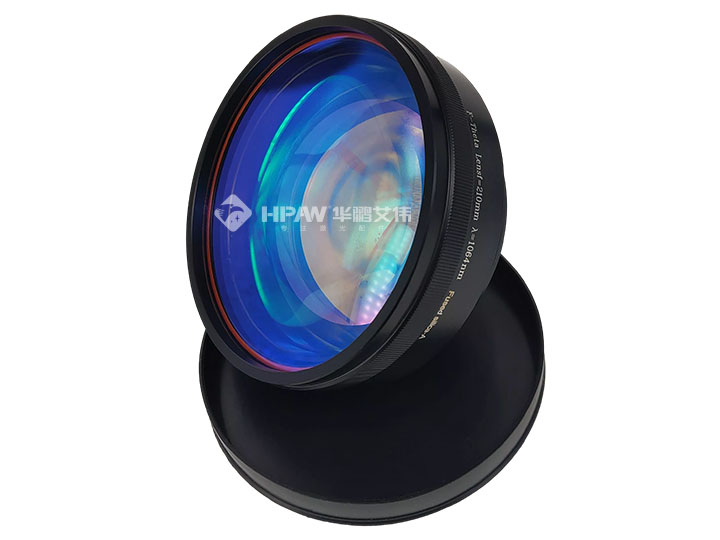

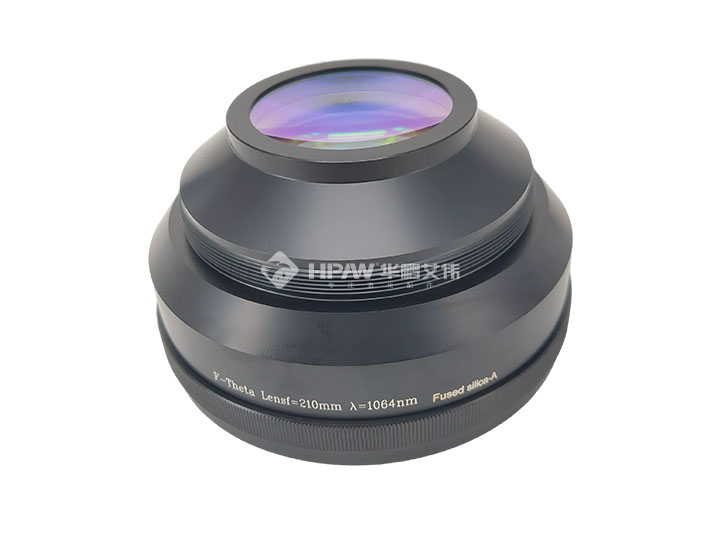

Fused silica F-Theta lens 1064nm

Quartz Laser F-Theta Lens 1064nm. Material: Fused Silica-A Wavelength: 1030nm~1090nm Focal length: 210mm Scan field: 150x150mm Entrance Dia.: 20mm Mounting thread: M85*1/M79*1 *More specifications are optional as showed in following pic*...

TEL：+8615012750061

Wechat：Justin-NBE-mail：Justin@hpaw.com

Description

Quartz Laser F-Theta Lens 1064nm.
Material: Fused Silica-A
Wavelength: 1030nm~1090nm
Focal length: 210mm
Scan field: 150x150mm
Entrance Dia.: 20mm
Mounting thread: M85*1/M79*1

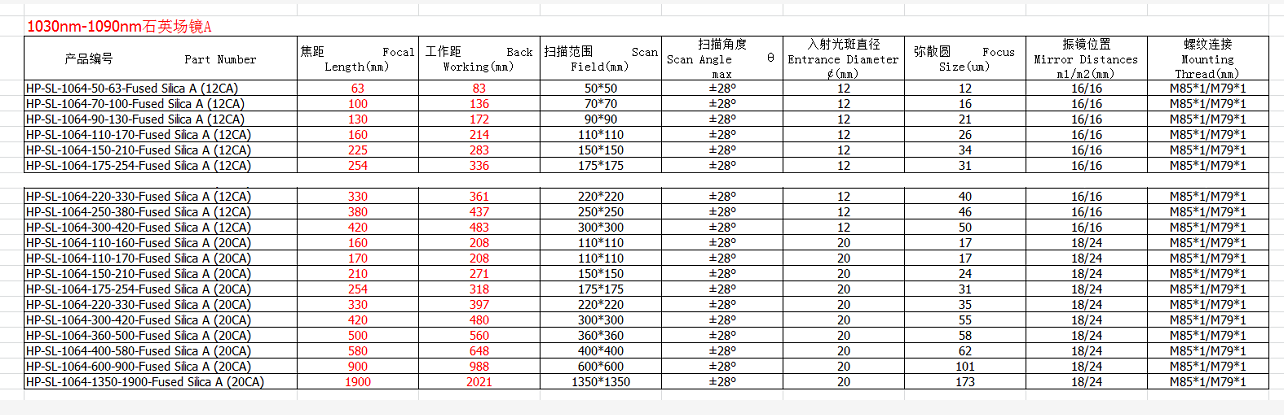

*More specifications are optional, as showed in following pic*
