Welding/Cutting Head

Fiber wobble weld head with CCD

QBH Fiber wobble laser welding head with CCD Technical parameters： ☆Max.Power：2000W（ higher power on request/contact us ） ☆Fiber interface：QBH ☆Collimation：D20F70/F100 ☆Focusing：D20F150/F200/F250/F300 ☆Clear aperture：...

TEL：+8615012750061

Wechat：Justin-NBE-mail：Justin@hpaw.com

Description

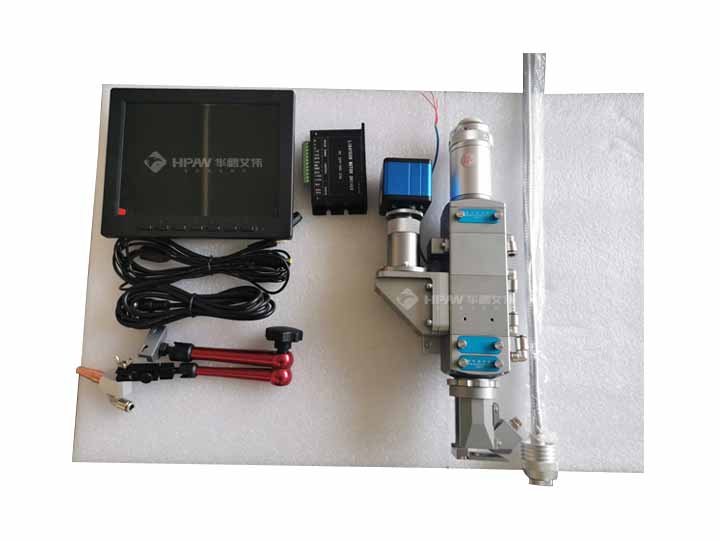

QBH Fiber wobble laser welding head with CCD

Technical parameters：

☆Max.Power：2000W（higher power on request/contact us）

☆Fiber interface：QBH

☆Collimation：D20F70/F100

☆Focusing：D20F150/F200/F250/F300

☆Clear aperture：D16mm

☆Collimated protection glass：D20X2mm

☆Focus protection glass：D20X2mm

☆Charge Coupled Device (CCD)：700TVL

☆Max motor speed:1.5W r/min

☆Spot diameter:1-3mm（other diameter on request）

☆A(yù)ssist gas pressure：10、15、20、25par

☆Weight：2.73kg

TAG： LaserWelding Welding head
